Disassembly And Assembly: Halfshaft: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Installer, Constant Velocity Joint Boot Clamp	205-343 (T95P-3514-A)

Material

Item	Specification
Constant Velocity Joint Grease (High Temperature) XG-5	WSS-M1C258-A1

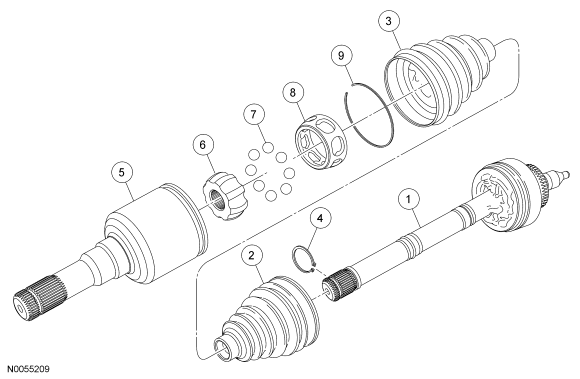

Fig 1: Exploded View Of Front Drive Halfshafts

Courtesy of FORD MOTOR CO.

Item	Description
1	Outboard constant velocity (CV) joint and interconnecting shaft assembly
2	Outboard boot
3	Inboard boot
4	Snap ring
5	Inboard CV joint housing
6	Inner race
7	Ball (8 required)
8	Ball cage
9	Retaining ring
