Windshield Wiper Motor Assembly Connector
Windshield Wiper Motor Assembly Connector

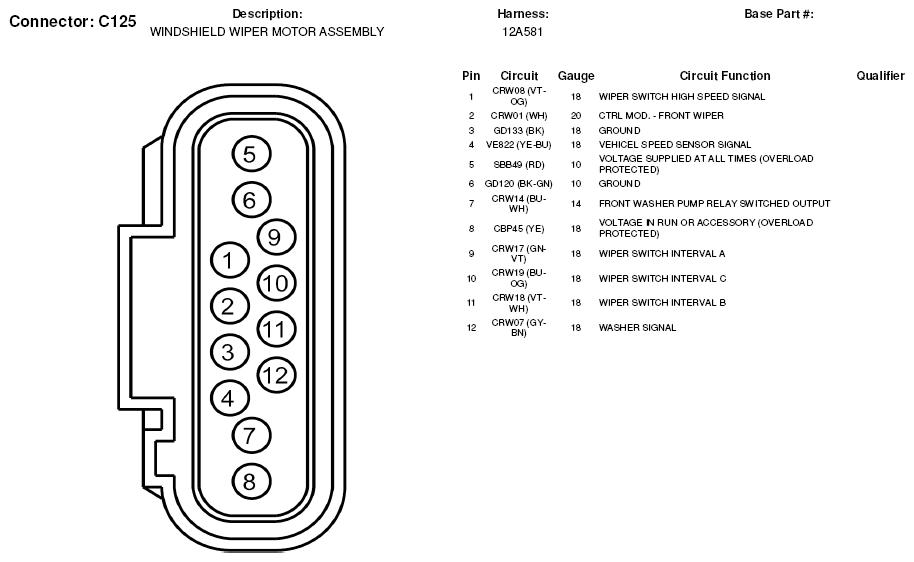

Fig 1: Windshield Wiper Motor Assembly Connector End View (C125)
