Audio Digital Signal Processing Module Connector End View - C4326

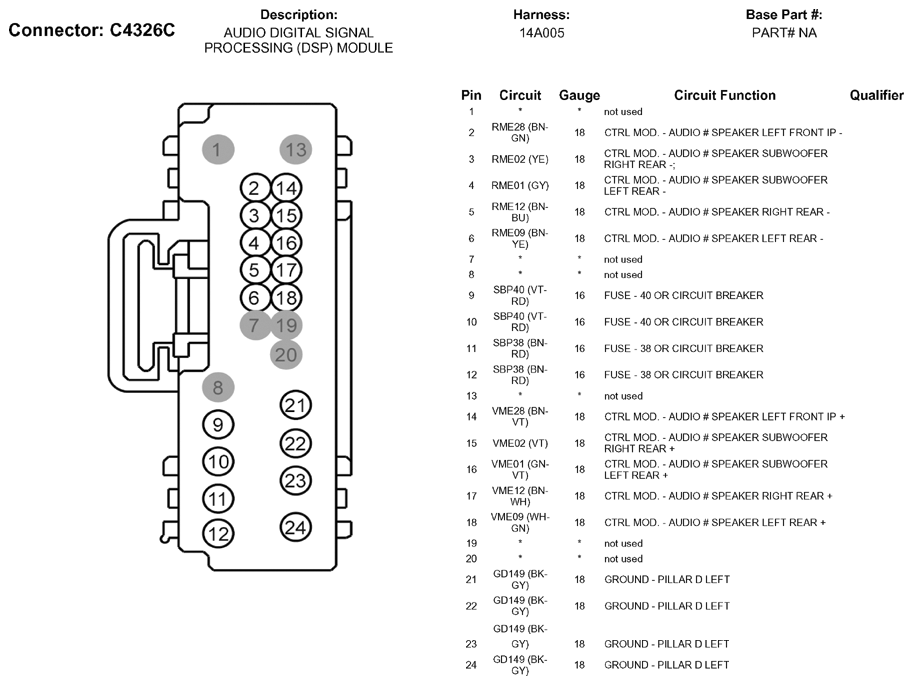

Fig 1: Audio Digital Signal Processing Module Connector End View (C4326C)
G05786129Courtesy of FORD MOTOR CO.
