Cruise Control Module Connector - C3173
Cruise Control Module Connector - C3173

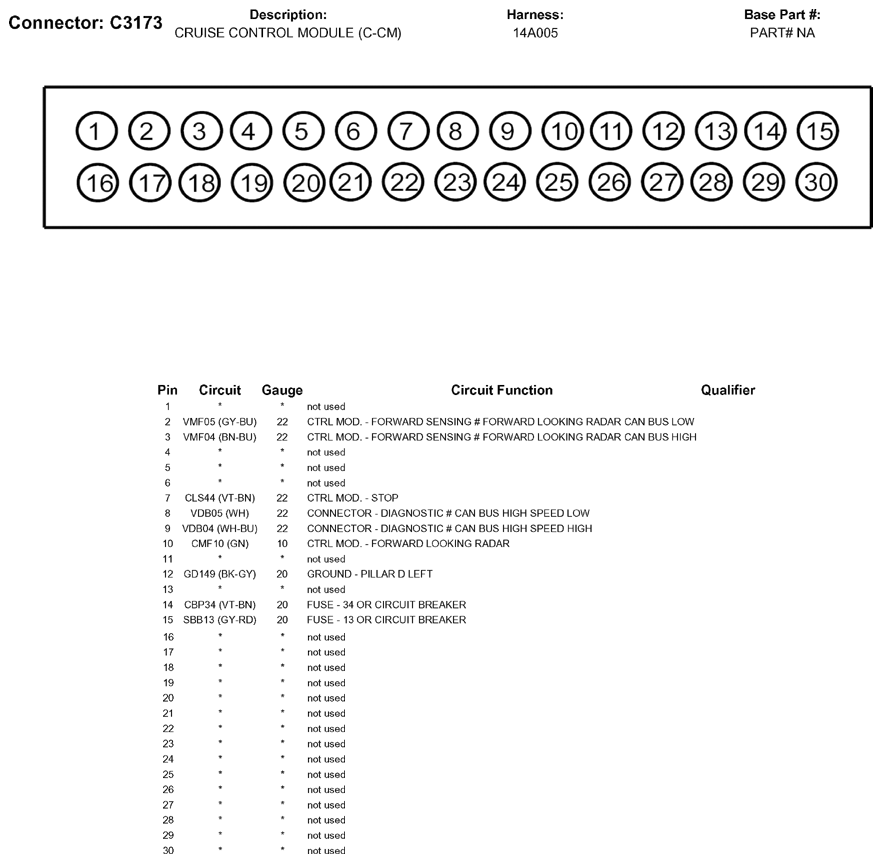

Fig 1: Cruise Control Module Connector End View (C3173)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
