Driver Side Front Seat Control Switch Connector End View - C360B
Driver Side Front Seat Control Switch Connector End View - C360B

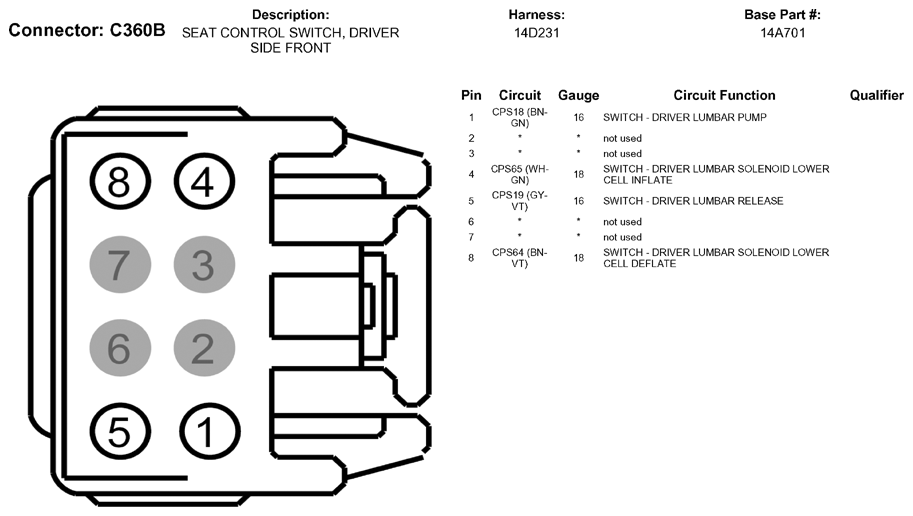

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
