Dual Climate Controlled Seat Module Connector End View - C3265C

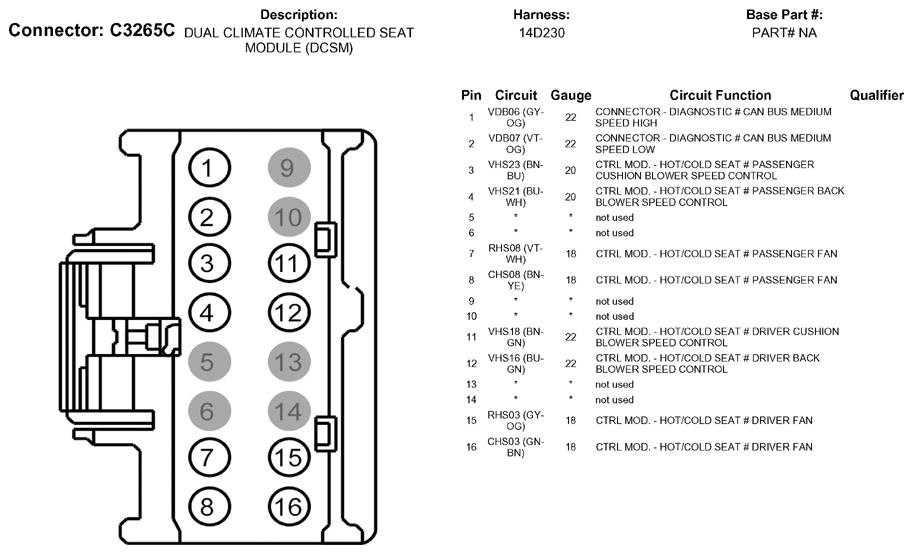

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3265C)
G05786097Courtesy of FORD MOTOR CO.
