Front Control Interface Module Connector End View - C2403

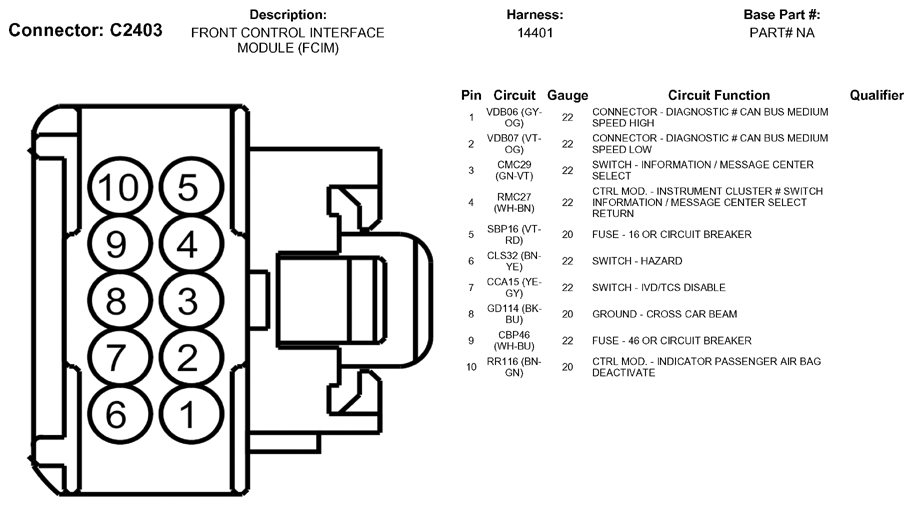

Fig 1: Front Control Interface Module Connector End View (C2403)
G05786051Courtesy of FORD MOTOR CO.
