Headlamp Control Module Connector - C1600

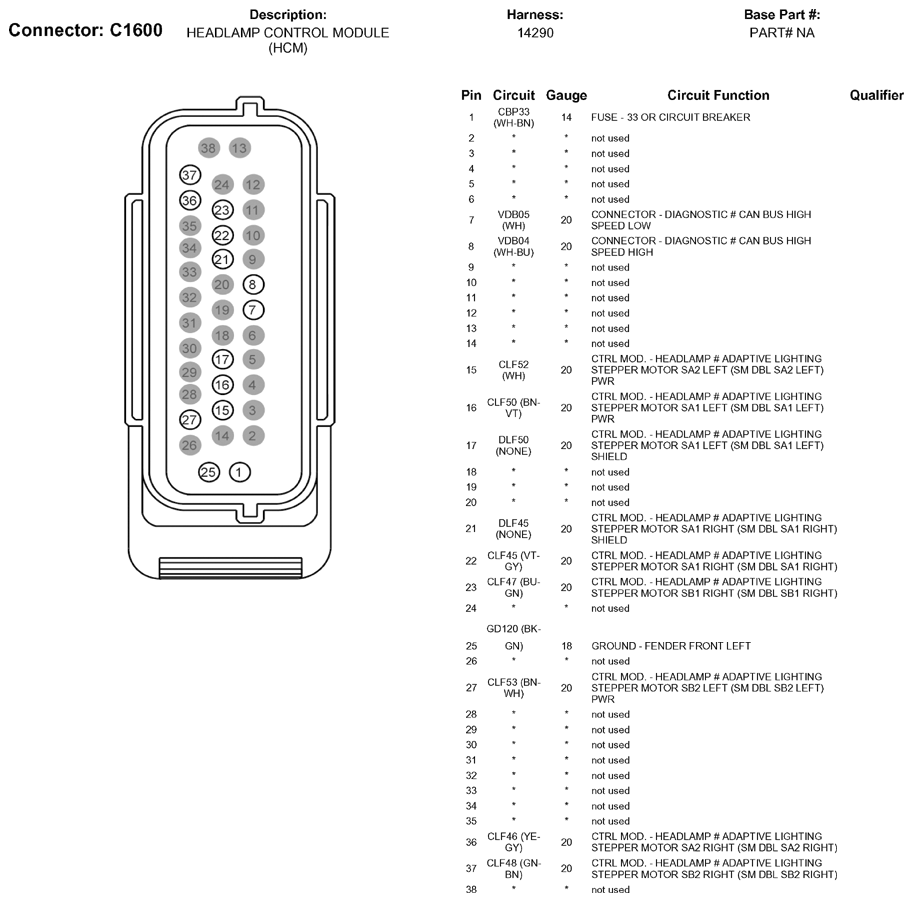

Fig 1: Headlamp Control Module Connector End View (C1600)
G05786012Courtesy of FORD MOTOR CO.
