Heated Seat Module Connector End View - C3304B
Heated Seat Module Connector End View - C3304B

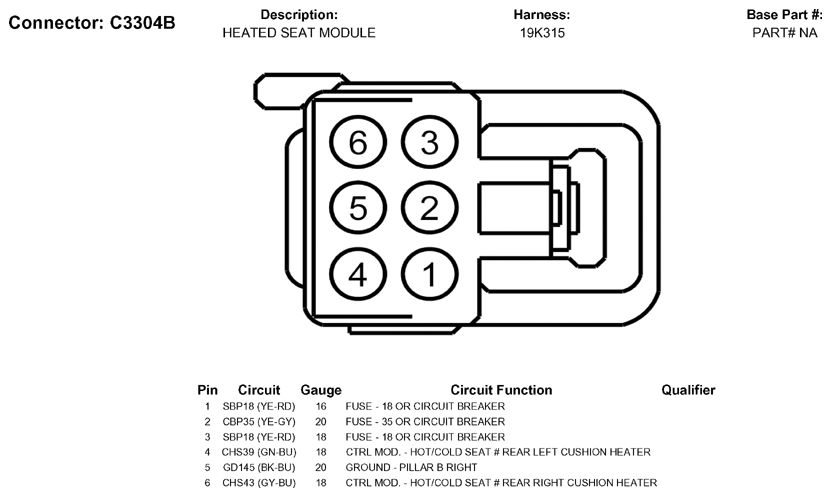

Fig 1: Heated Seat Module Connector End View (C3304B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
