Parking Aid Module Connector End View - C4226B
Parking Aid Module Connector End View - C4226B

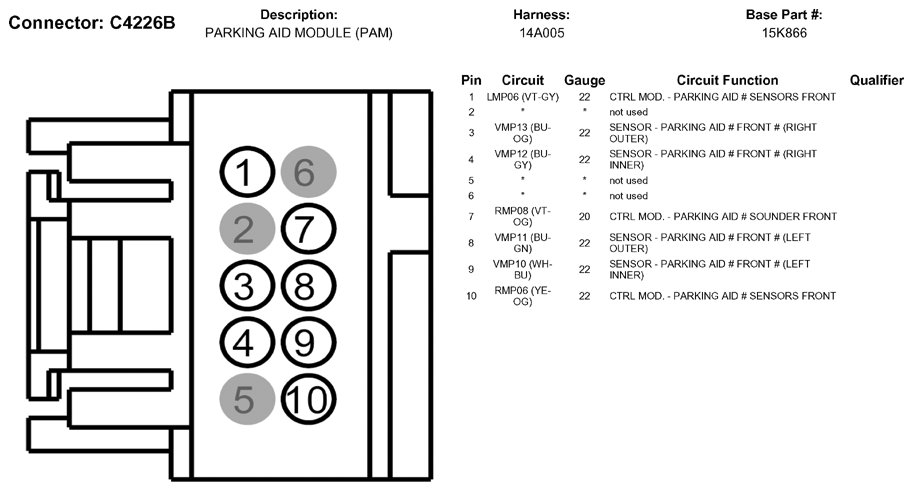

Fig 1: Parking Aid Module Connector End View (C4226B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
