Remote Functions Receiver Module Connector - C9026

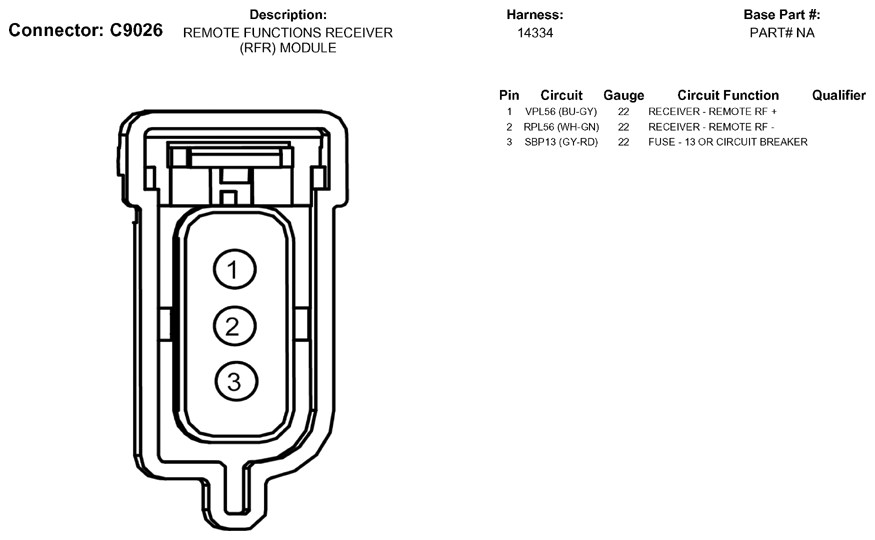

Fig 1: Remote Functions Receiver Module Connector End View (C9026)
G05786134Courtesy of FORD MOTOR CO.
