Audio Control Module (ACM): Notes

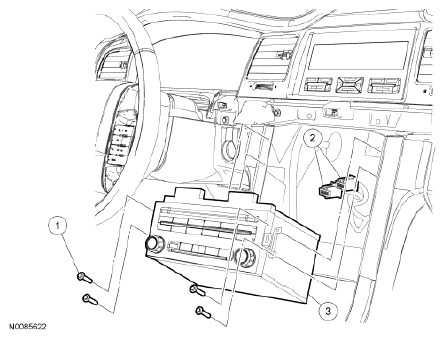

Fig 1: Exploded View Of Audio Control Module (ACM)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W707628-S	Audio Control Module (ACM) screws (4 required)
2	-	ACM  electrical connectors (part of 14401)
3	18806	ACM
