Steering Wheel Controls: Notes

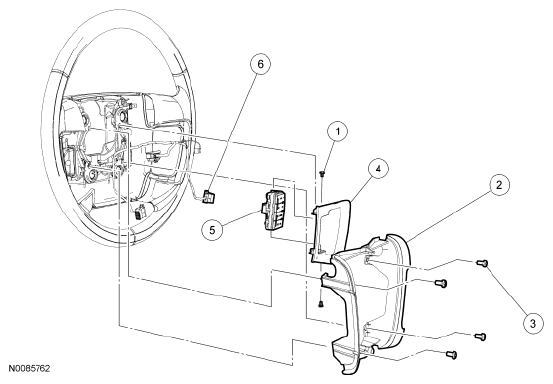

Fig 1: Exploded View Of Steering Wheel Controls

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Steering wheel controls bezel screws (2 required)
2	-	Steering wheel bezel box
3	-	Steering wheel bezel box screws (4 required)
4	-	Steering wheel controls bezel
5	9E740	Steering wheel controls
6	-	Steering wheel controls electrical connector (part of steering wheel harness)
