Removal And Installation: Radiator: Notes

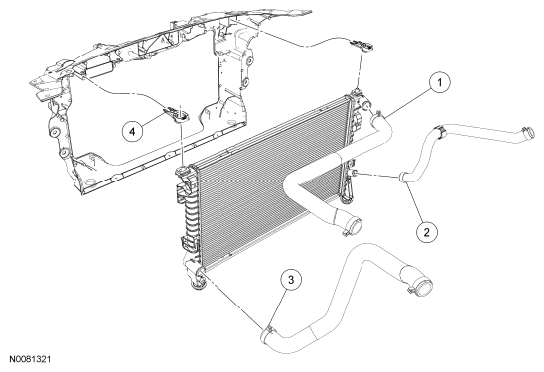

Fig 1: Exploded View Of Radiator

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	8B274	Upper radiator hose
2	8W005	Lower degas bottle hose
3	8B273	Lower radiator hose
4	8A194	Upper radiator support bracket (2 required)

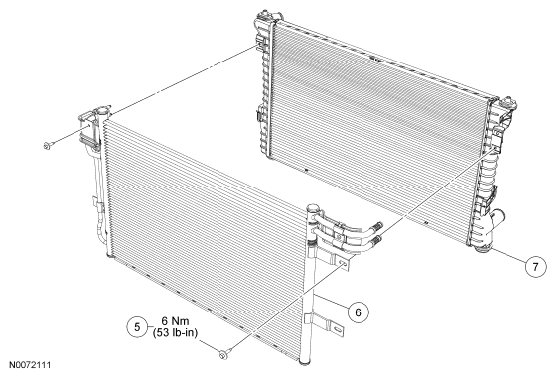

Fig 2: A/C Condenser With Mounting Bolts With Torque Specification

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
5	W503924	A/C condenser bolt (2 required)
6	19E908	A/C condenser
7	8005	Radiator
