Blower Motor Speed Control: Notes

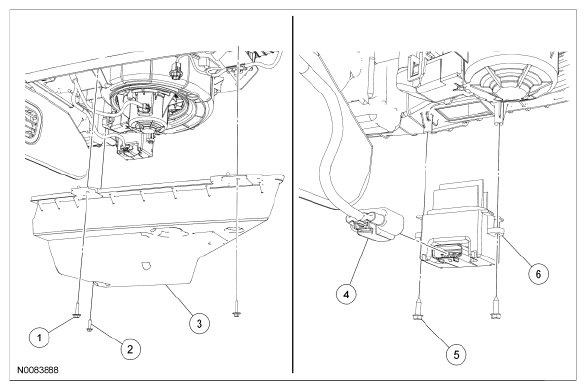

Fig 1: Identifying Blower Motor Speed Control Components

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	W707628	RH lower instrument panel insulator front screw (2 required)
2	W707281	RH lower instrument panel insulator rear screw
3	54046A24	RH lower instrument panel insulator
4	14401	Blower motor speed control electrical connector
5	W701696	Blower motor speed control screw (2 required)
6	19E624	Blower motor speed control
