In-Vehicle Temperature Sensor: Notes

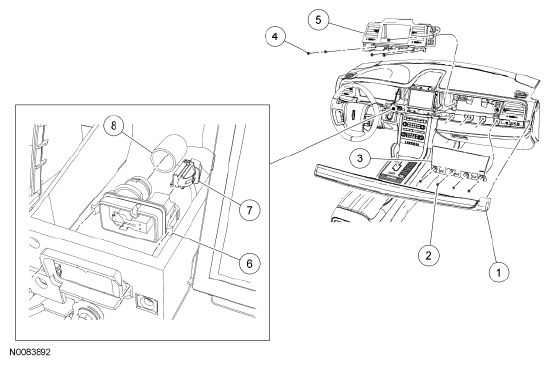

Fig 1: Identifying In-Vehicle Temperature Sensor Components

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	5404388	RH instrument panel finish moulding
2	W707628	Instrument panel finish panel screw (4 required)
3	54046A62	Instrument panel finish panel
4	W707628	Center instrument panel finish panel screw (5 required)
5	5404302	Center instrument panel finish panel
6	19C734	In-vehicle temperature sensor
7	-	In-vehicle temperature sensor electrical connector (part of 14401)
8	19D888	In-vehicle temperature sensor aspirator hose
