Special Tool(s)
SPECIAL TOOL CHART
| Oil Pan Holding Fixture 303-1295 |

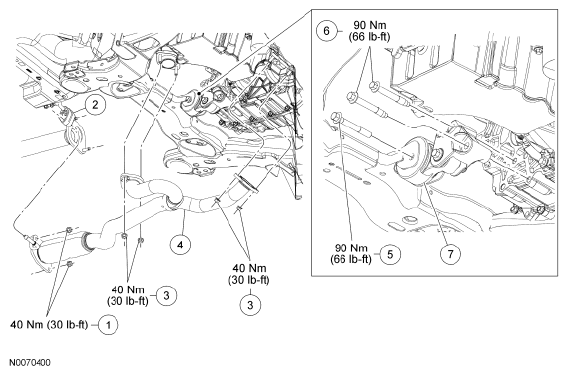

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W705443 | Y-pipe nuts |
| 2 | 5F262 | Y-pipe hanger |
| 3 | W705443 | Y-pipe-to-catalytic converter nuts |
| 4 | 5G274 | Y-pipe assembly |
| 5 | W706674 | Roll restrictor-to-subframe through bolt |
| 6 | W713156 | Roll restrictor bracket bolts |
| 7 | 6P082 | Roll restrictor assembly |

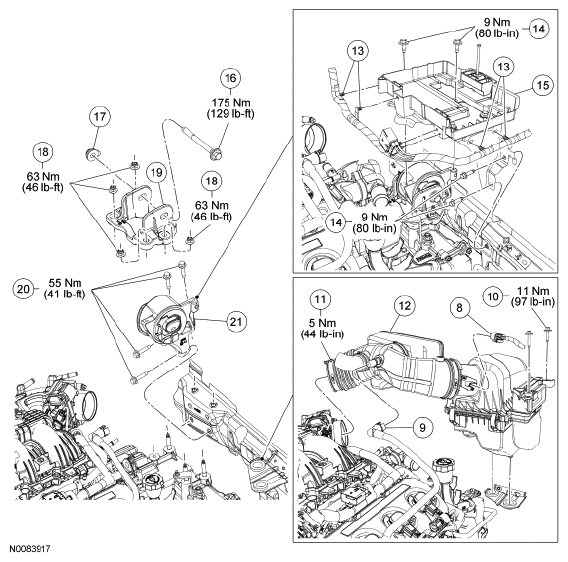

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 8 | 14A464 | Electrical connector - Mass Air Flow (MAF) sensor |
| 9 | 6758 | Tube assembly - crankcase vent |
| 10 | N606678 | Bolt - Air Cleaner (ACL) bracket |
| 11 | 9C632 | Clamp - ACL outlet pipe |
| 12 | 9C662 | ACL assembly |
| 13 | 13A506 | Fasteners - wiring harness |
| 14 | W503924 | Bolts - battery tray |
| 15 | 10723 | Battery tray |
| 16 | W711873 | Through bolt - transaxle support insulator |
| 17 | W711872 | Flag nut - transaxle support insulator through bolt |
| 18 | W712334 | Nuts - transaxle support insulator bracket |
| 19 | 6B033 | Bracket - transaxle support insulator |
| 20 | W709234 | Bolts - transaxle support insulator |
| 21 | 6F020 | Transaxle support insulator |
