Stability Control Sensor Cluster: Notes

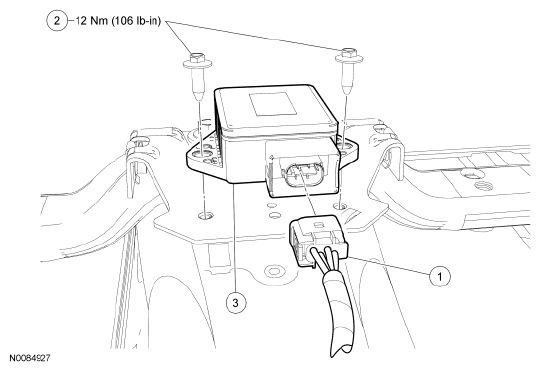

Fig 1: Identifying Stability Control Sensor Cluster Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Stability control sensor cluster electrical connector (part of 14A318)
2	W707722	Stability control sensor cluster bracket bolts (2 required)
3	3C187	Stability control sensor cluster
