Collapsible Steering Column Module Connector - C2360

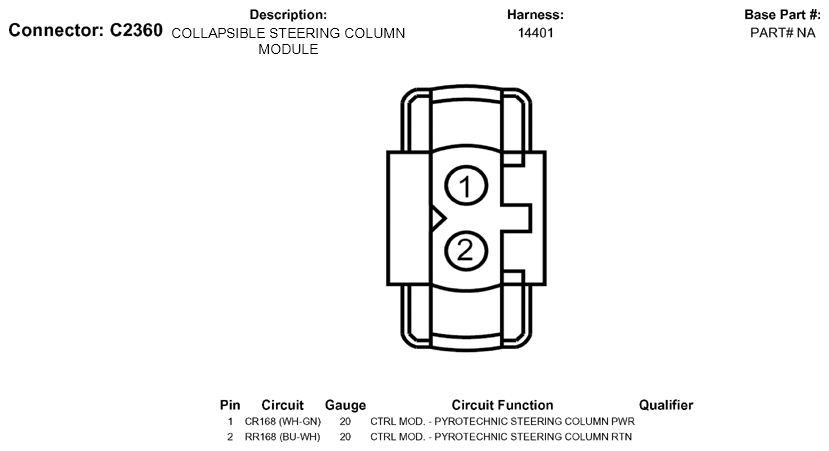

Fig 1: Collapsible Steering Column Module Connector End View (C2360)
G05786047Courtesy of FORD MOTOR CO.
