Parking Aid Module Connector
›
Parking Aid Module Connector End View - C4014
Parking Aid Module Connector End View - C4014

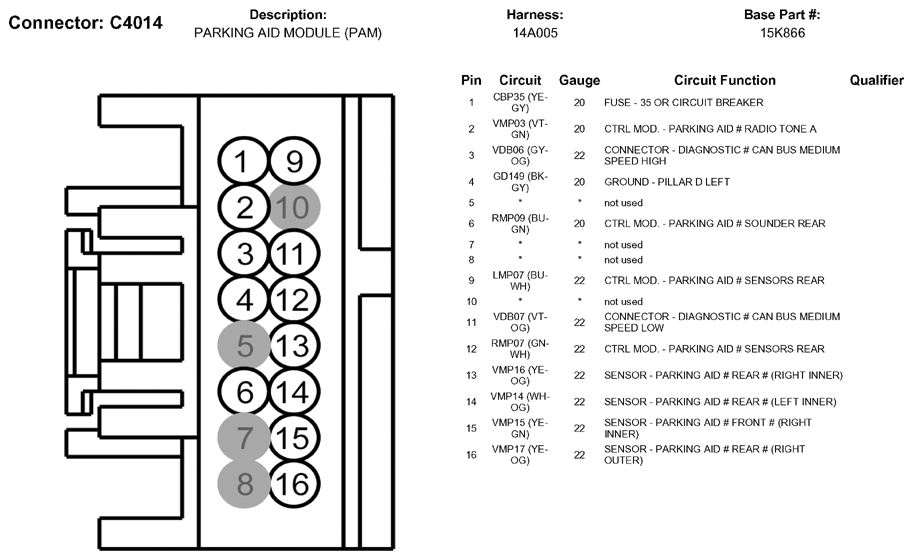

Fig 1: Parking Aid Module Connector End View (C4014)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
