Parking Aid Module Connector End View - C4226A
Parking Aid Module Connector End View - C4226A

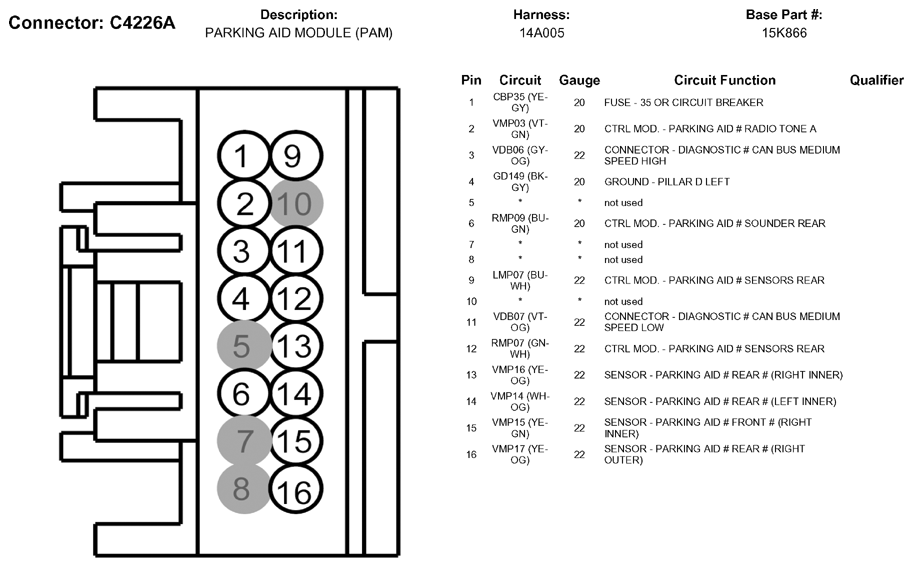

Fig 1: Parking Aid Module Connector End View (C4226A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
