Audio Control Module Connector End View (C240A)

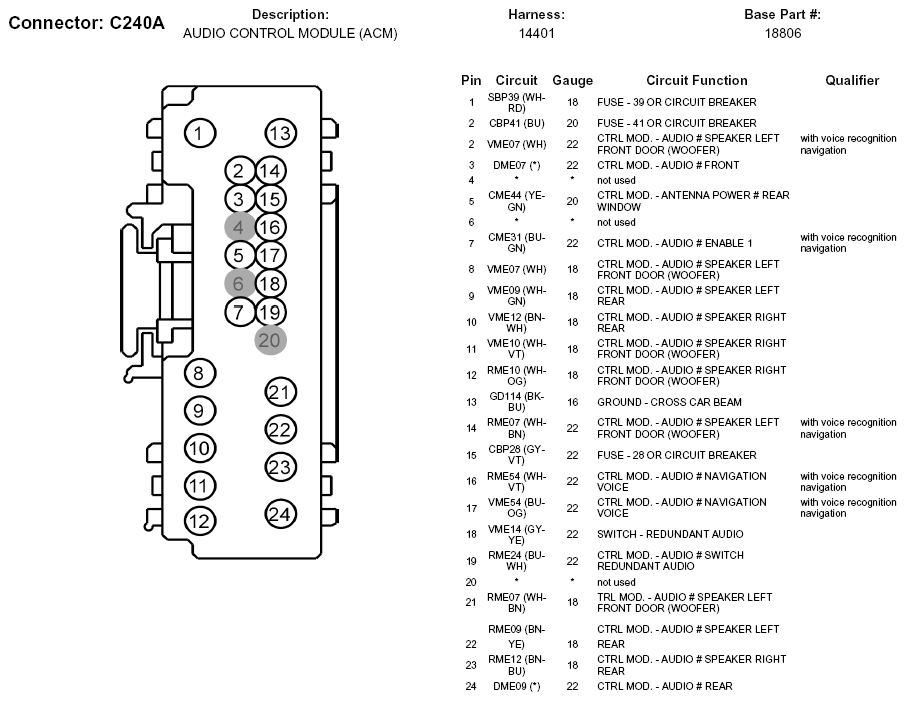

Fig 1: Audio Control Module Connector End View (C240A)
G05746947Courtesy of FORD MOTOR CO.
