Audio Control Module Connector End View (C240B)

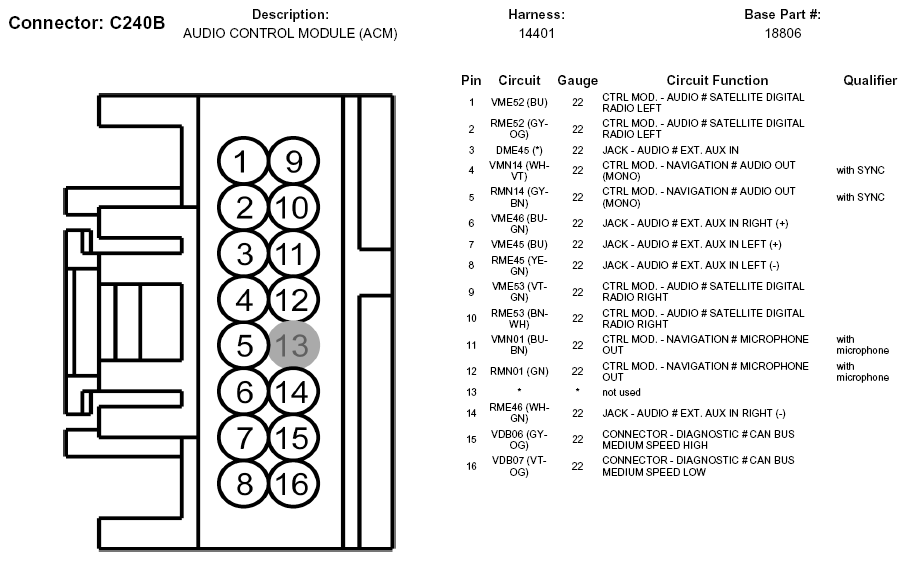

Fig 1: Audio Control Module Connector End View (C240B)
G05746948Courtesy of FORD MOTOR CO.
