Audio Control Module Connector End View (C240C)

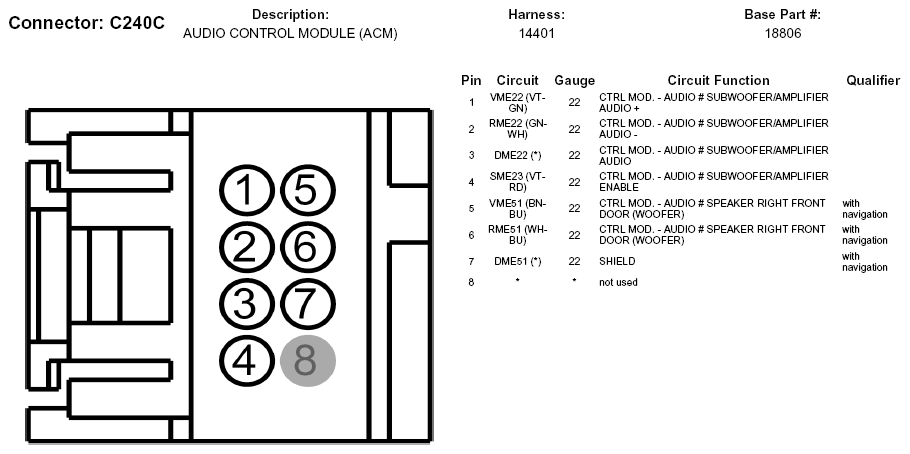

Fig 1: Audio Control Module Connector End View (C240C)
G05746949Courtesy of FORD MOTOR CO.
