Audio Digital Signal Processing Module Connector
›
Audio Digital Signal Processing Module Connector End View (C4348A)
Audio Digital Signal Processing Module Connector End View (C4348A)

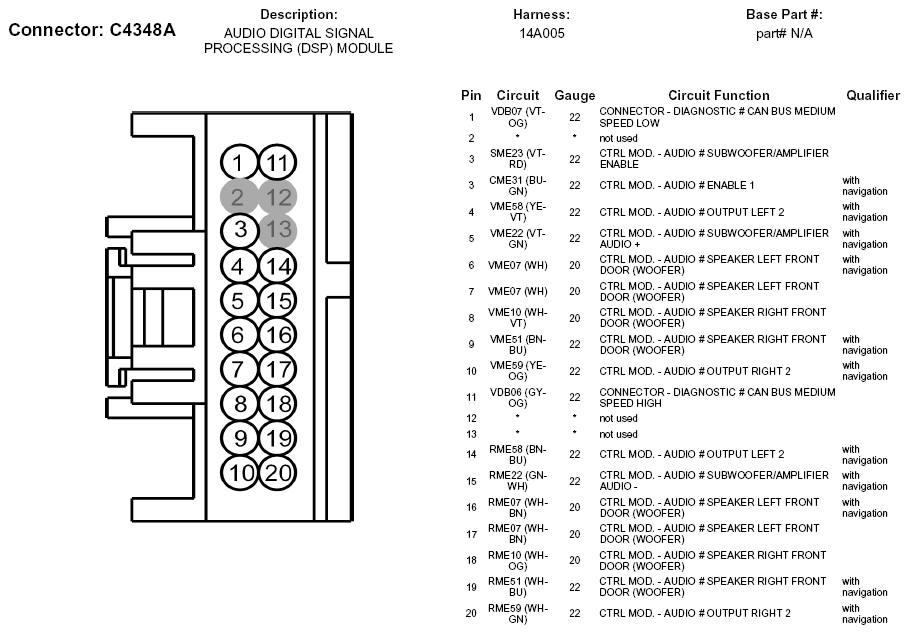

Fig 1: Audio Digital Signal Processing Module Connector End View (C4348A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
