DATC HVAC Module Connector End View (C228B)

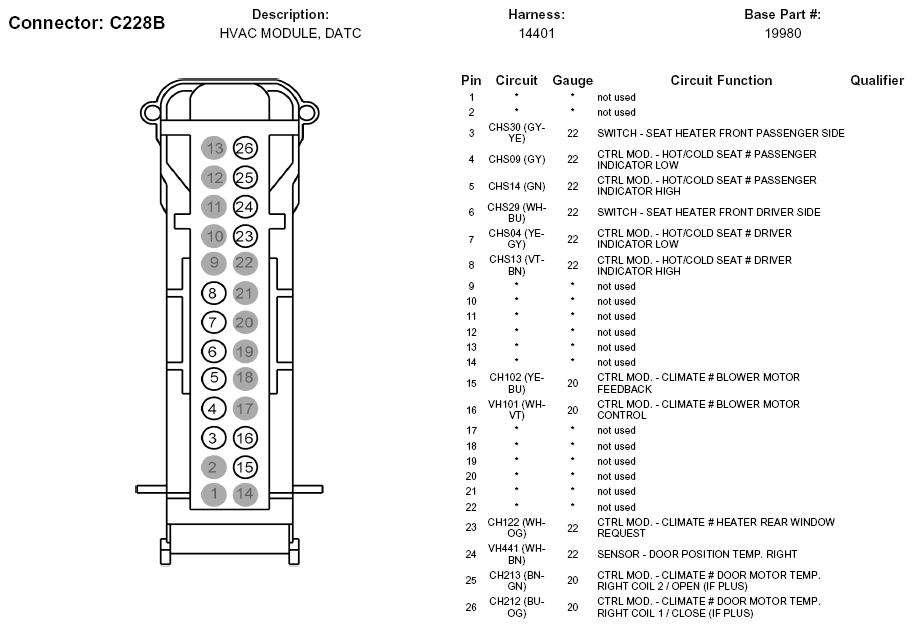

Fig 1: DATC HVAC Module Connector End View (C228B)
G05746943Courtesy of FORD MOTOR CO.
