Driver Seat Module Connector End View (C3299A)

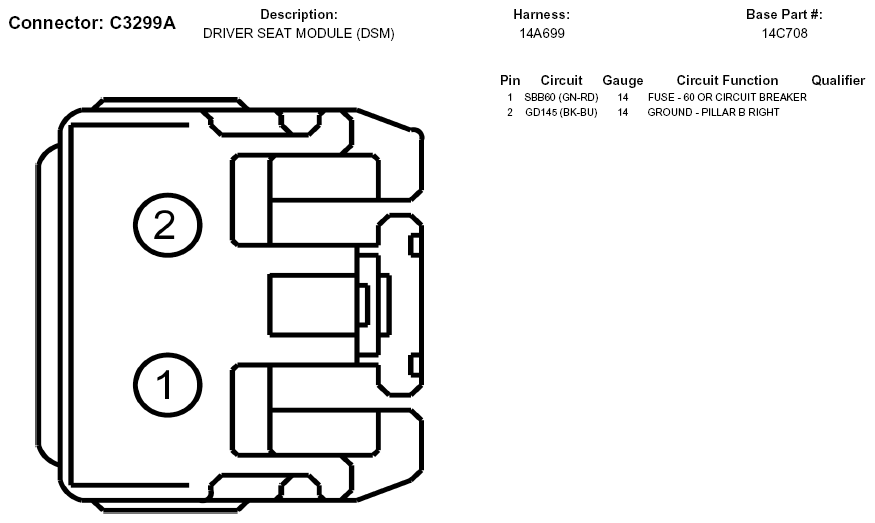

Fig 1: Driver Seat Module Connector End View (C3299A)
G05747156Courtesy of FORD MOTOR CO.
