Driver Seat Module Connector End View (C3299B)

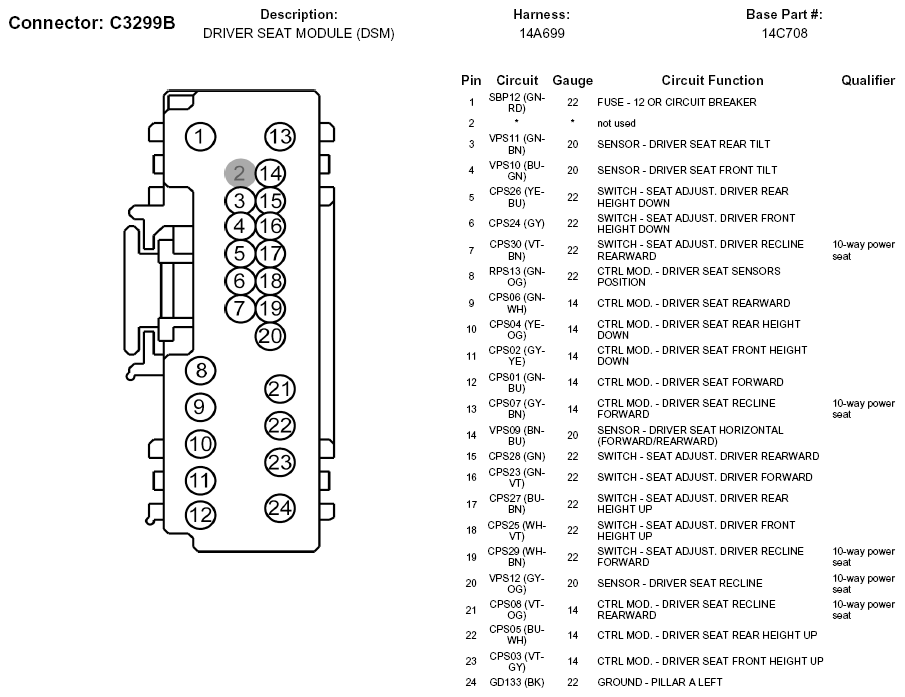

Fig 1: Driver Seat Module Connector End View (C3299B)
G05747157Courtesy of FORD MOTOR CO.
