Home › Lincoln › 2009 › MKX AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Driver Seat Module Connector › Driver Seat Module Connector End View (C3299C)

Driver Seat Module Connector End View (C3299C)

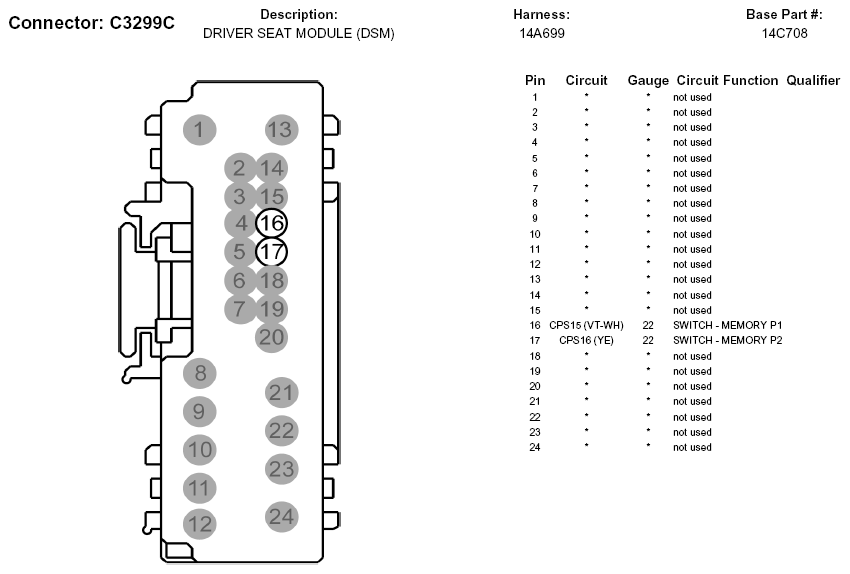

Fig 1: Driver Seat Module Connector End View (C3299C)
G05747158Courtesy of FORD MOTOR CO.
