Driver Seat Module Connector End View (C3299D)

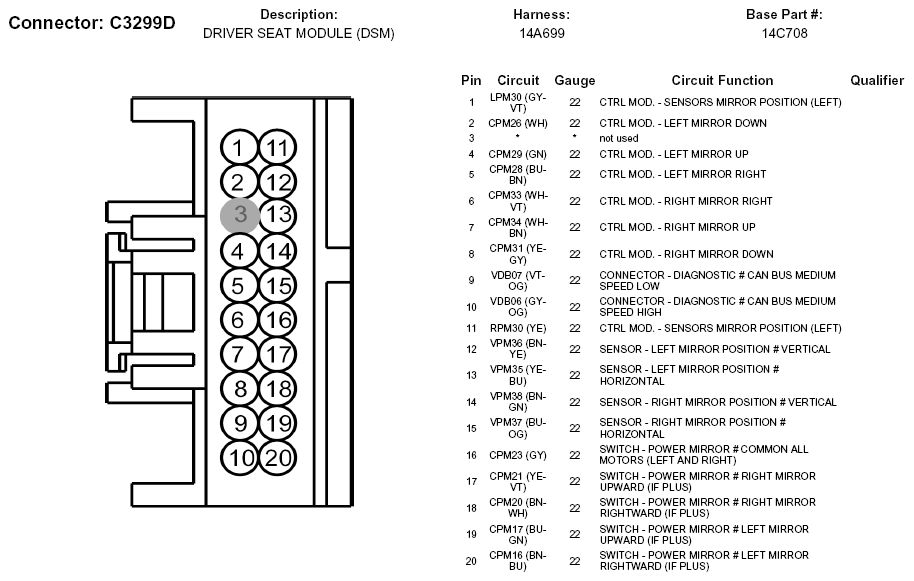

Fig 1: Driver Seat Module Connector End View (C3299D)
G05747159Courtesy of FORD MOTOR CO.
