EMTC HVAC Module Connector End View (C2357A)

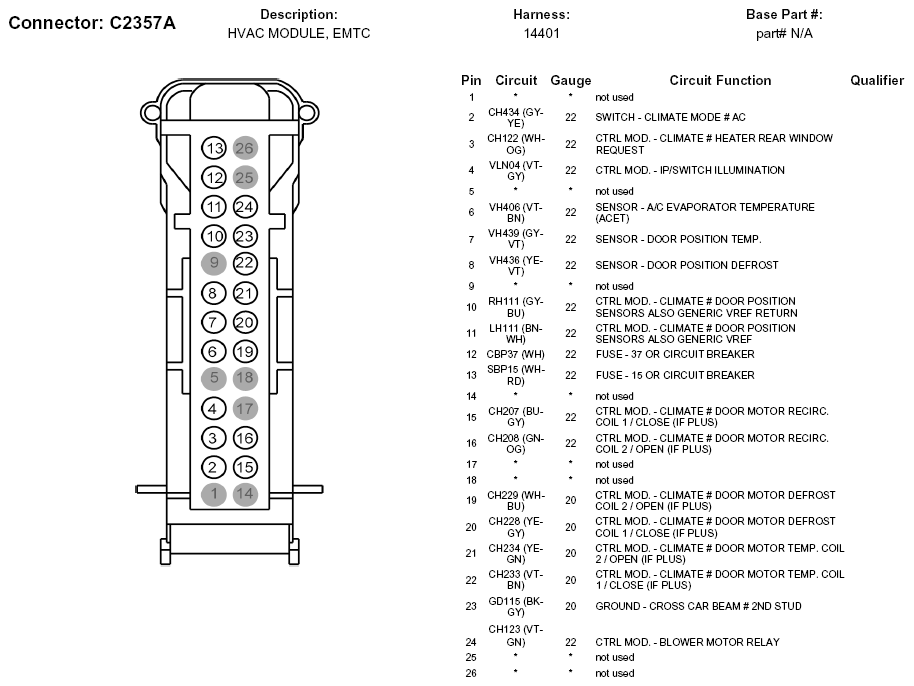

Fig 1: EMTC HVAC Module Connector End View (C2357A)
G05747118Courtesy of FORD MOTOR CO.
