EMTC HVAC Module Connector End View (C2357B)

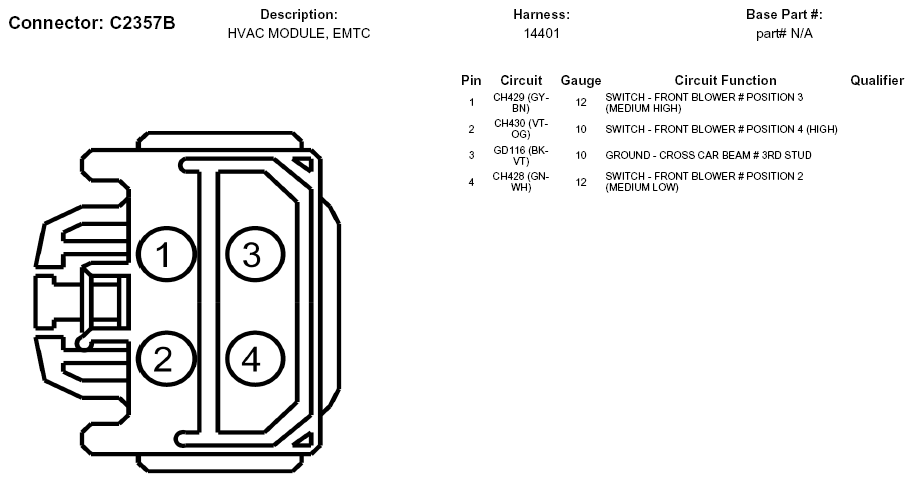

Fig 1: EMTC HVAC Module Connector End View (C2357B)
G05747119Courtesy of FORD MOTOR CO.
