Liftgate Module / Trunk Module Connector End View (C4174A)

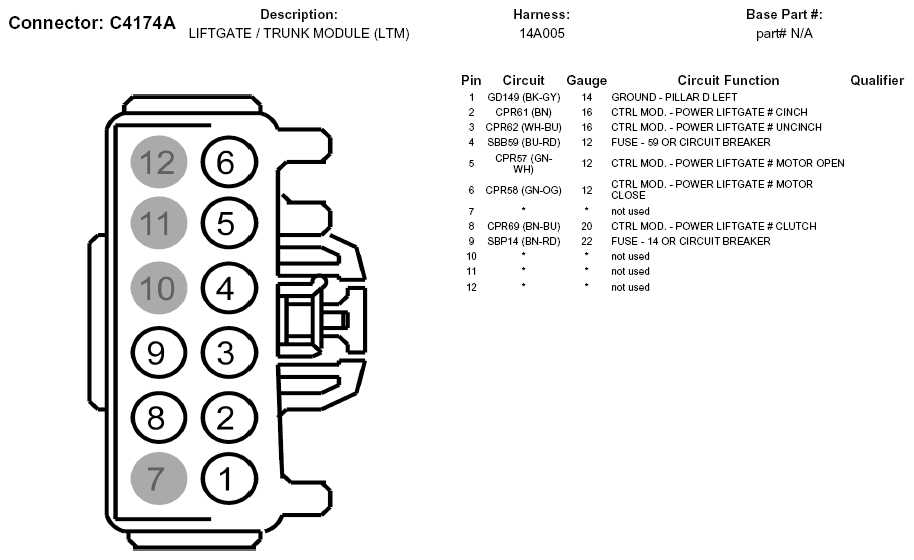

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174A)
G05747195Courtesy of FORD MOTOR CO.
