Liftgate Module / Trunk Module Connector End View (C4174B)

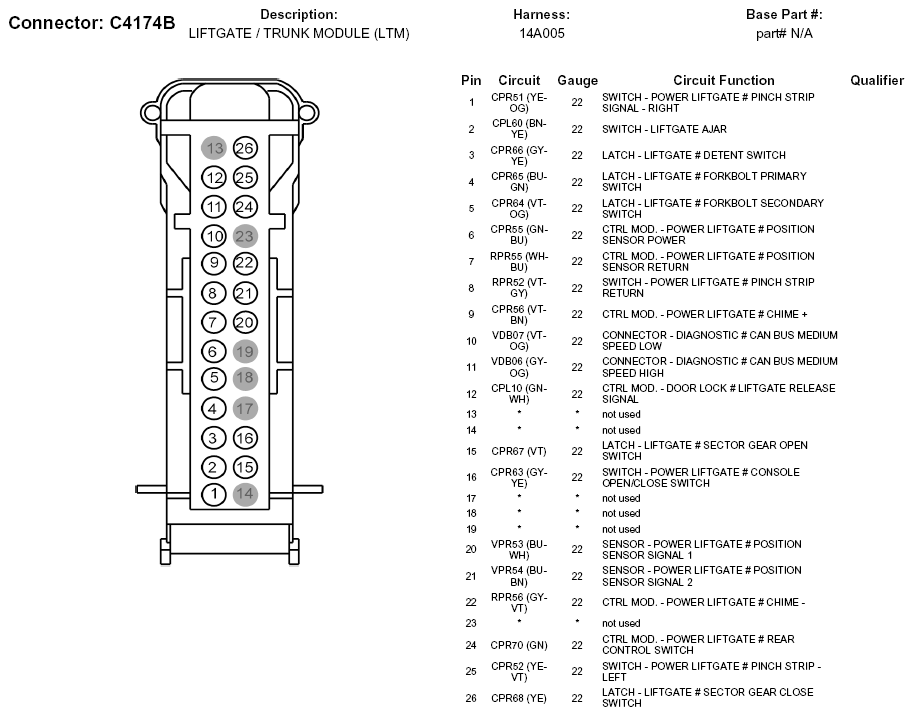

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174B)
G05747196Courtesy of FORD MOTOR CO.
