Powertrain Control Module Connector End View (C175B)

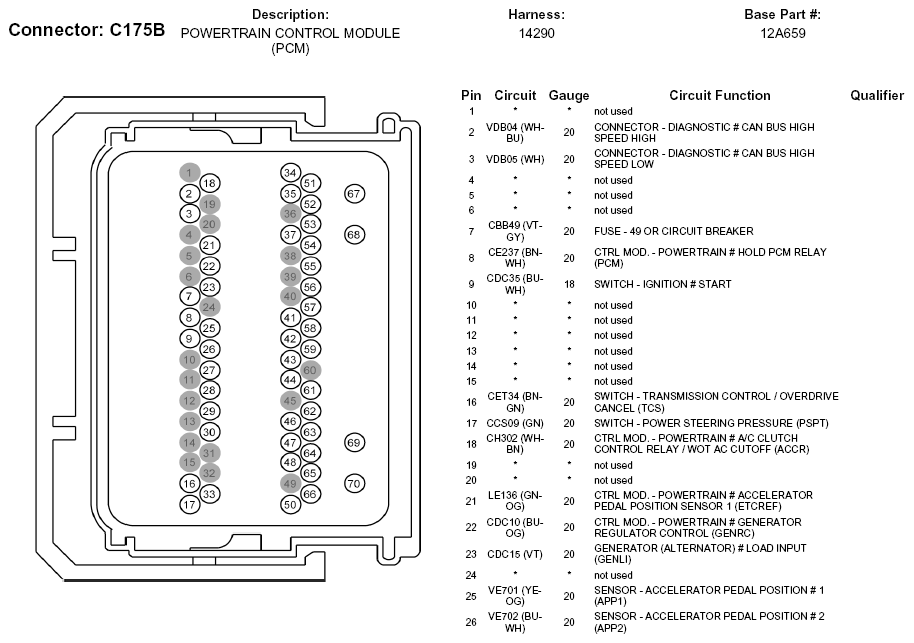

Fig 1: Powertrain Control Module Connector End View (C175B) (1 Of 2)
G05746912Courtesy of FORD MOTOR CO.

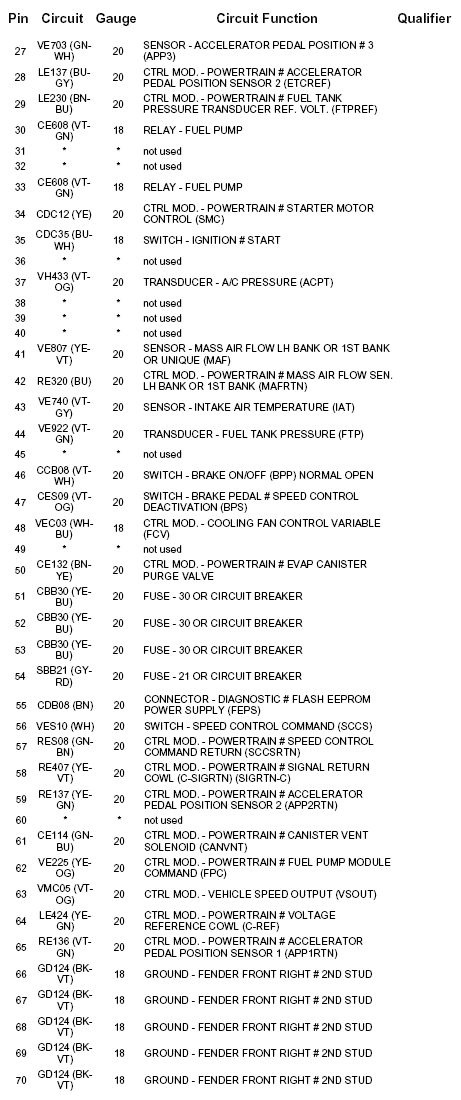

Fig 2: Powertrain Control Module Connector End View (C175B) (2 Of 2)
G05746913Courtesy of FORD MOTOR CO.
