Powertrain Control Module Connector End View (C175E)

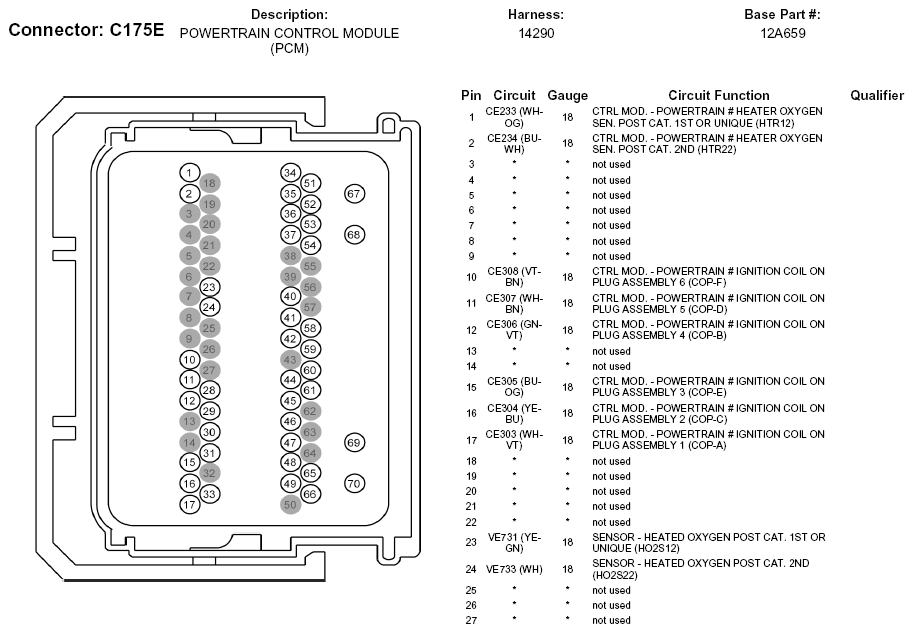

Fig 1: Powertrain Control Module Connector End View (C175E) (1 Of 2)
G05746914Courtesy of FORD MOTOR CO.

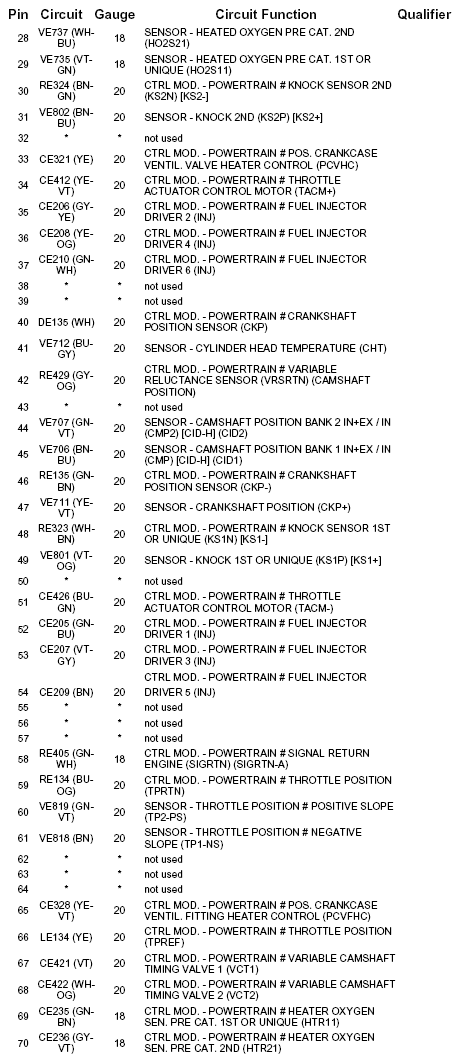

Fig 2: Powertrain Control Module Connector End View (C175E) (2 Of 2)
G05746915Courtesy of FORD MOTOR CO.
