Home › Lincoln › 2009 › MKZ AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Ambient Lighting Module Connector - C3251

Ambient Lighting Module Connector - C3251

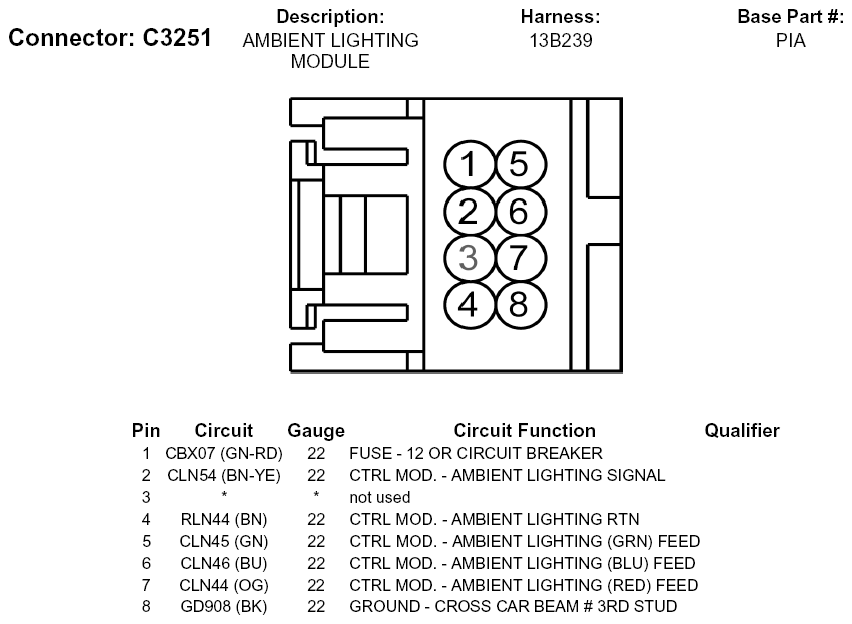

Fig 1: Ambient Lighting Module Connector End View (C3251)
G05770094Courtesy of FORD MOTOR CO.
