Keypad Switch Assembly Connector - C530

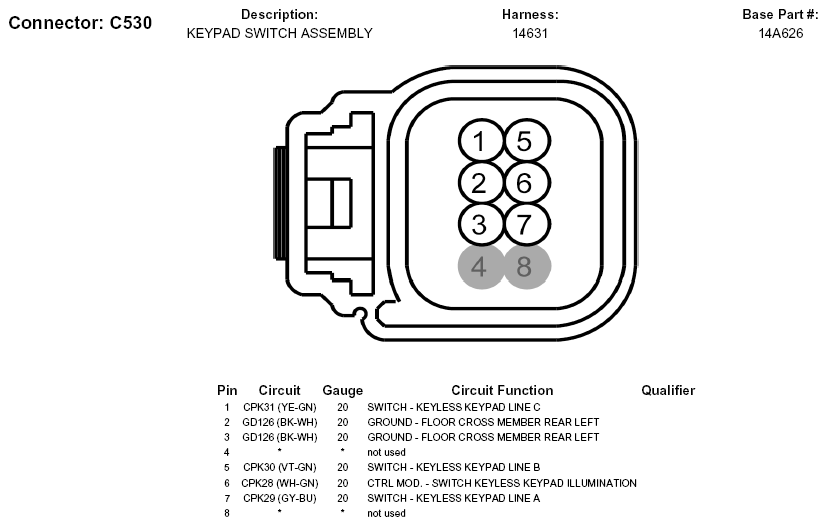

Fig 1: Keypad Switch Assembly Connector End View (C530)
G05769932Courtesy of FORD MOTOR CO.
