Passenger Side Window Control Switch Connector End View - C624

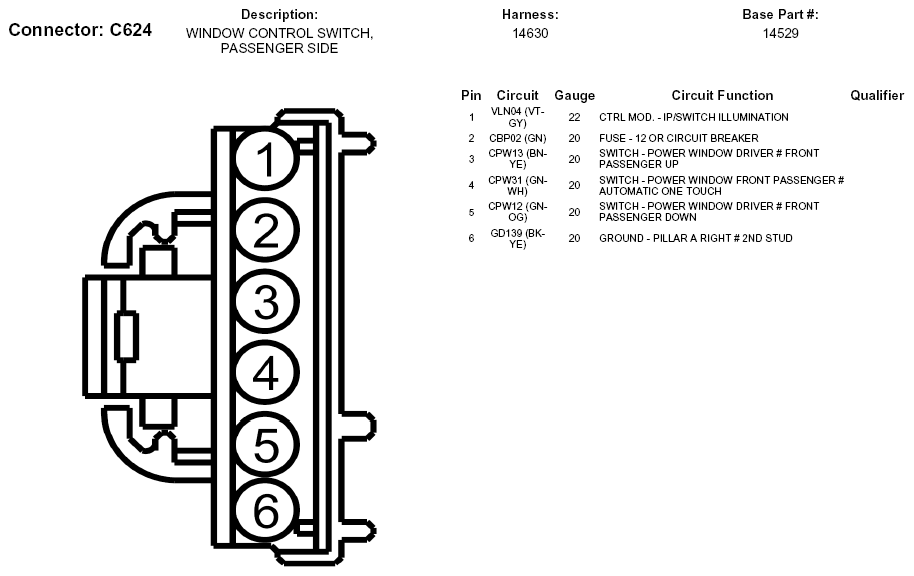

Fig 1: Passenger Side Window Control Switch Connector End View (C624)
G05769951Courtesy of FORD MOTOR CO.
