Front Brake Pads: Notes
WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

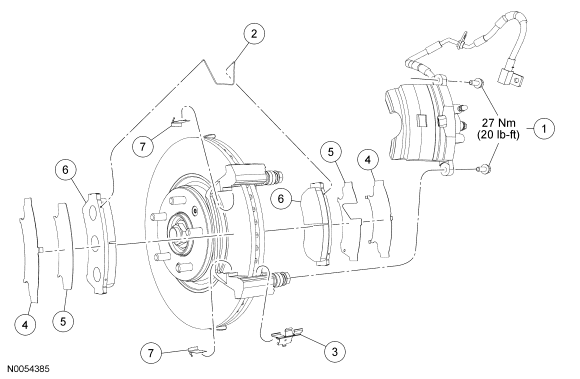

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper guide pin bolts (2 required) (part of 2L527) |
| 2 | - | Brake pad retraction spring (2 required) (part of 2001) |
| 3 | - | Brake pad slide (2 required) (part of 2001) |
| 4 | - | Stainless steel shims (2 required) (part of 2001) |
| 5 | - | Brake pad shims (2 required) (part of 2001) |
| 6 | 2001 | Brake pads (2 required) |
| 7 | - | Brake pad slide clips (4 required) (part of 2001) |
