Audio Control Module Connector
›
Audio Control Module Connector End View - C290C
Audio Control Module Connector End View - C290C

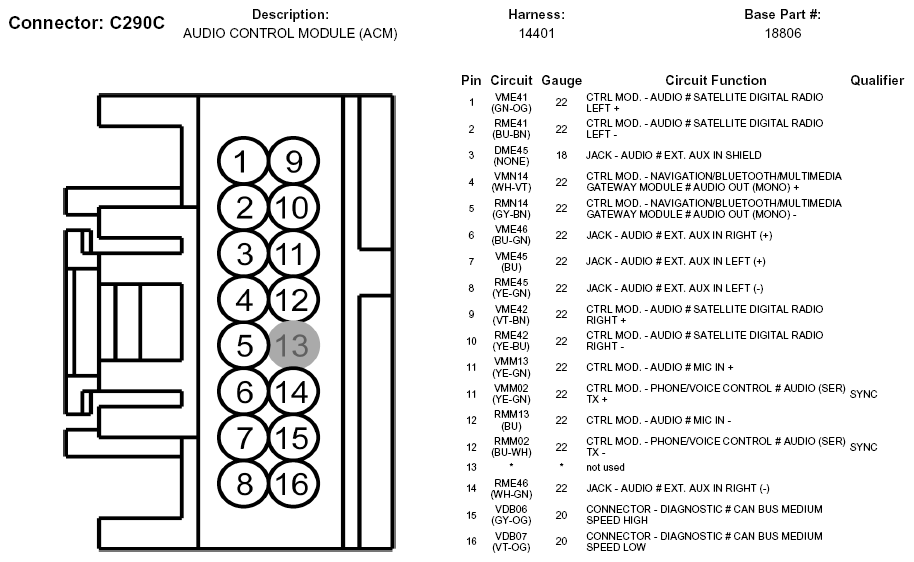

Fig 1: Audio Control Module Connector End View (C290C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
