Driver Seat Module Connector End View - C3299D

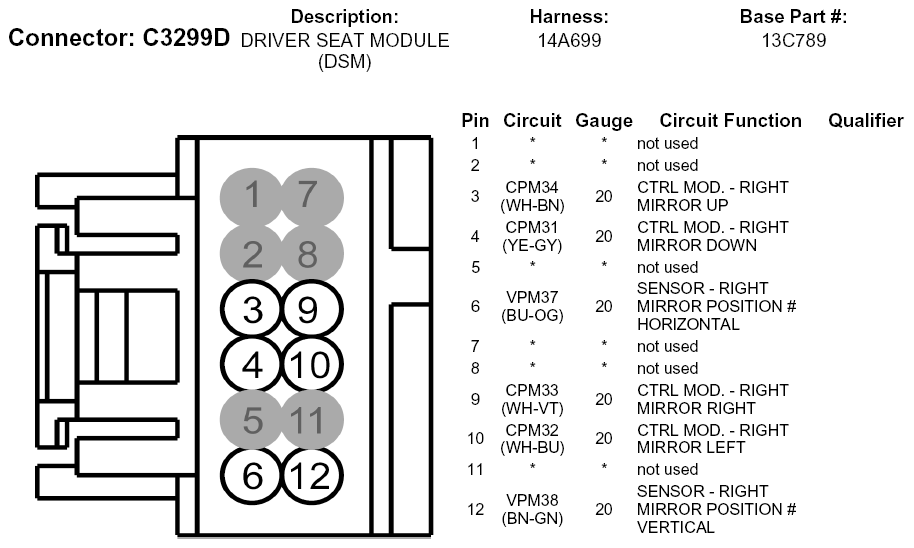

Fig 1: Driver Seat Module Connector End View (C3299D)
G05770106Courtesy of FORD MOTOR CO.
