Driver Side Front Seat Control Switch Connector End View - C369

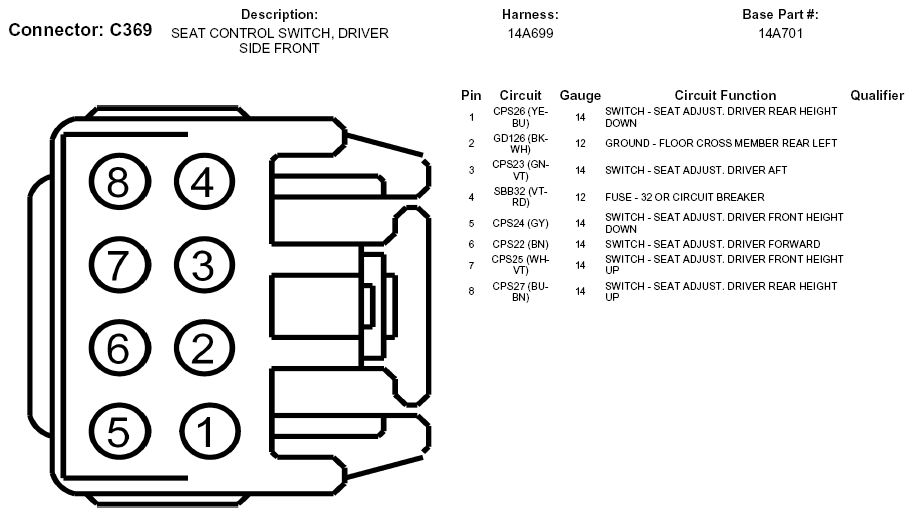

Fig 1: Driver Side Front Seat Control Switch Connector End View (C369)
G05769885Courtesy of FORD MOTOR CO.
