Electronic Throttle Control Module Connector End View - C1368

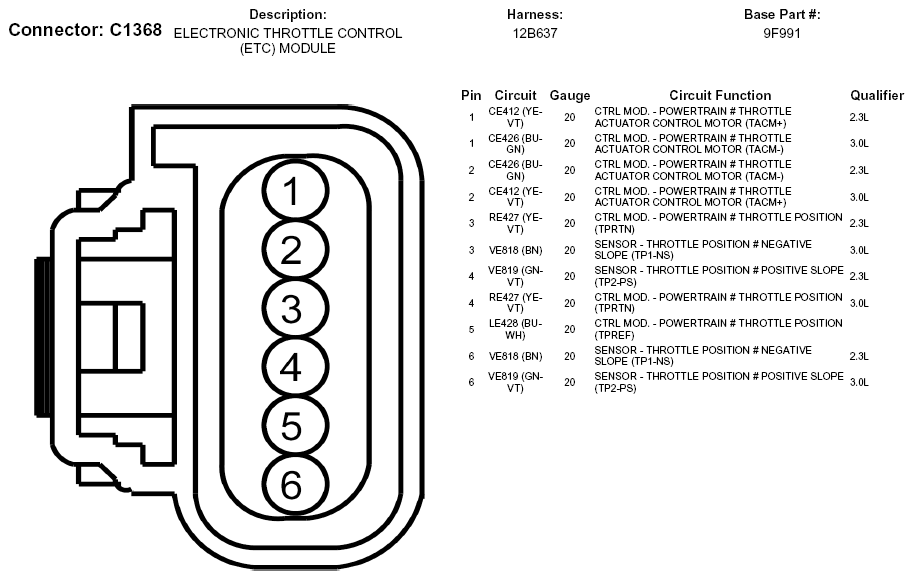

Fig 1: Electronic Throttle Control Module Connector End View (C1368)
G05769999Courtesy of FORD MOTOR CO.
