Electronic Throttle Control Module Connector End View - C1568

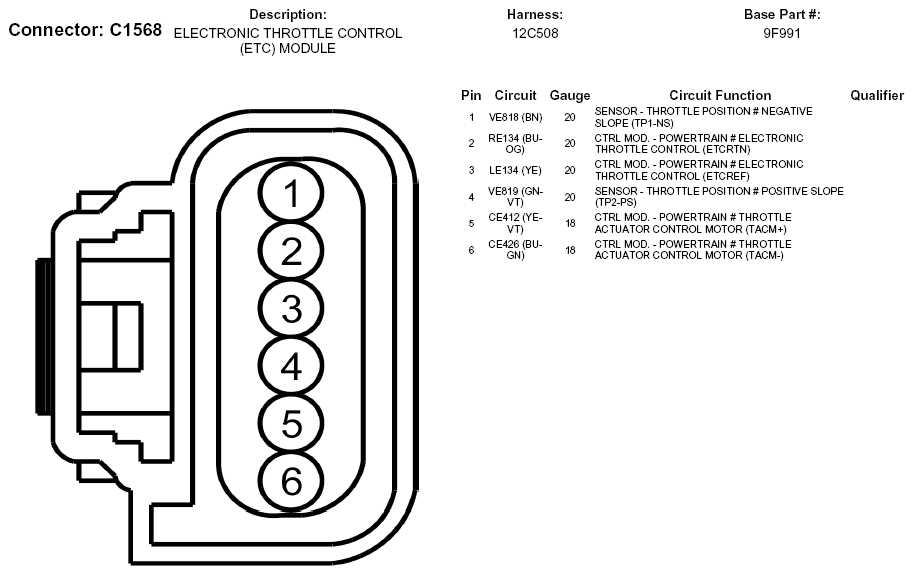

Fig 1: Electronic Throttle Control Module Connector End View (C1568)
G05770021Courtesy of FORD MOTOR CO.
