FNR5 Transmission Control Module Connector
›
FNR5 Transmission Control Module Connector End View - C2352A
FNR5 Transmission Control Module Connector End View - C2352A

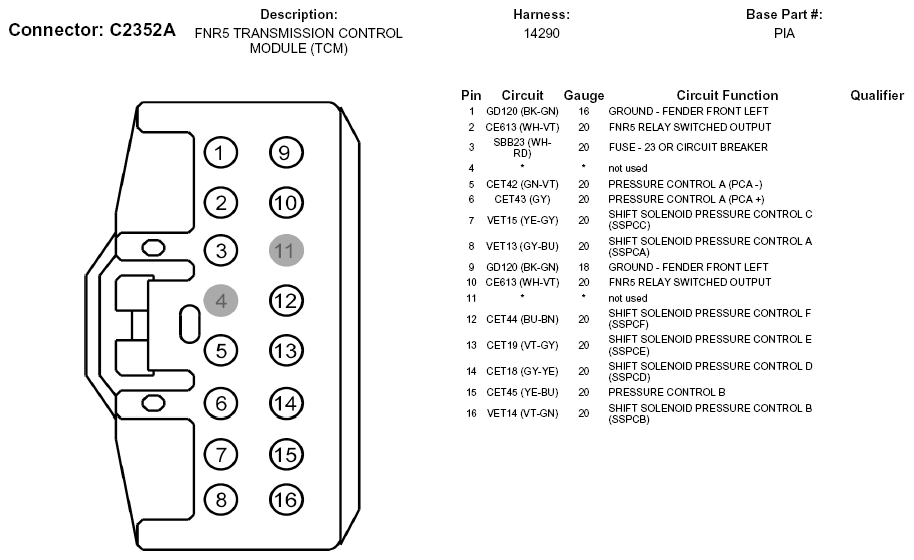

Fig 1: FNR5 Transmission Control Module Connector End View (C2352A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
