Master Window Control Switch Connector
›
Master Window Control Switch Connector End View - C535A
Master Window Control Switch Connector End View - C535A

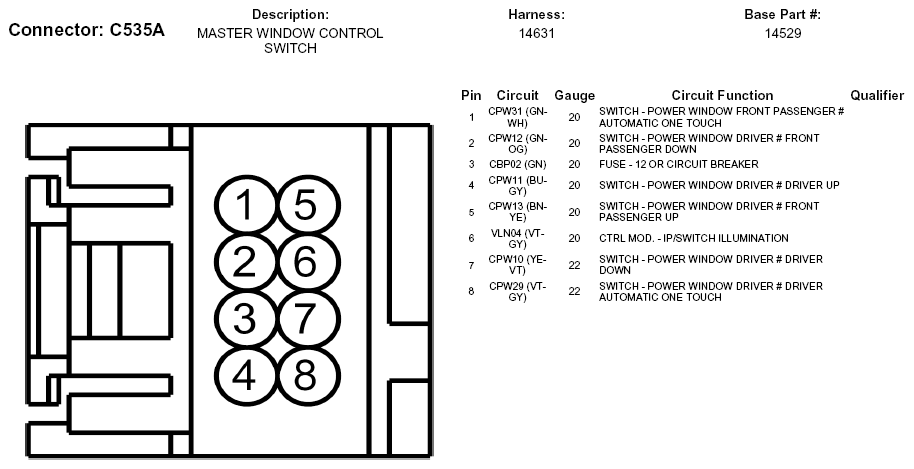

Fig 1: Master Window Control Switch Connector End View (C535A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
