Master Window Control Switch Connector
›
Master Window Control Switch Connector End View - C537B
Master Window Control Switch Connector End View - C537B

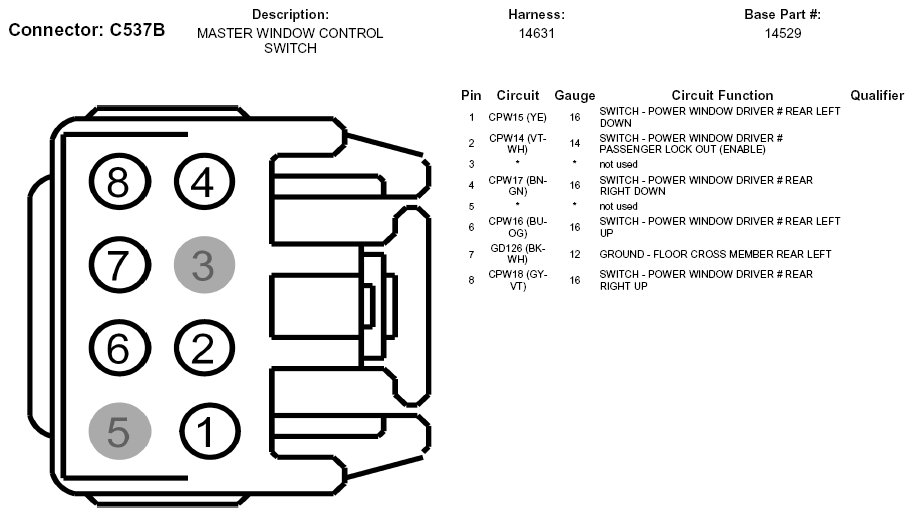

Fig 1: Master Window Control Switch Connector End View (C537B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
