Sunload Sensor Connector - C286

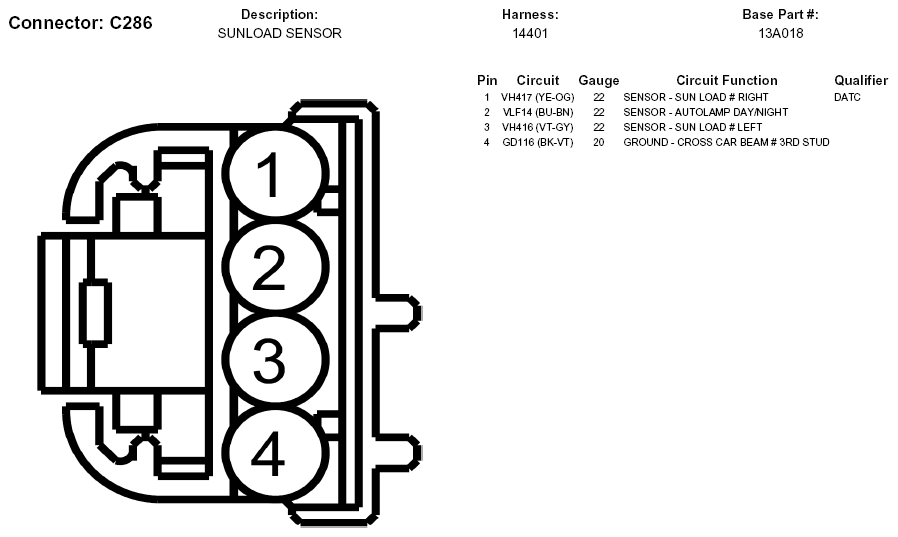

Fig 1: Sunload Sensor Connector End View (C286)
G05769856Courtesy of FORD MOTOR CO.
