Transaxle Support Insulator: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Lifting Bracket, Engine	303-050 (T70P-6000)
Courtesy of FORD MOTOR CO.	Oil Pan Holding Fixture	303-1295
Courtesy of FORD MOTOR CO.	Support Bar, Engine	303-F072
Courtesy of FORD MOTOR CO.	Universal Adapter Brackets	014-0001

Material

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

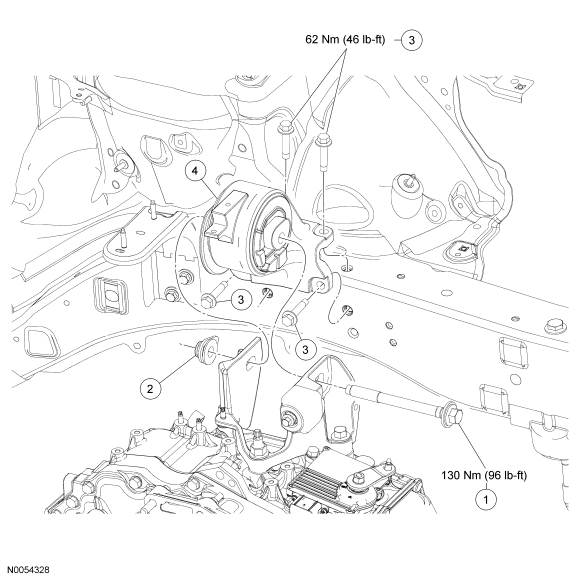

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.0L Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711724	Transaxle support insulator-to-bracket bolt (2 required)
2	W709234	Transaxle insulator-to-frame bolts (4 required)
3	6F020	Transaxle insulator

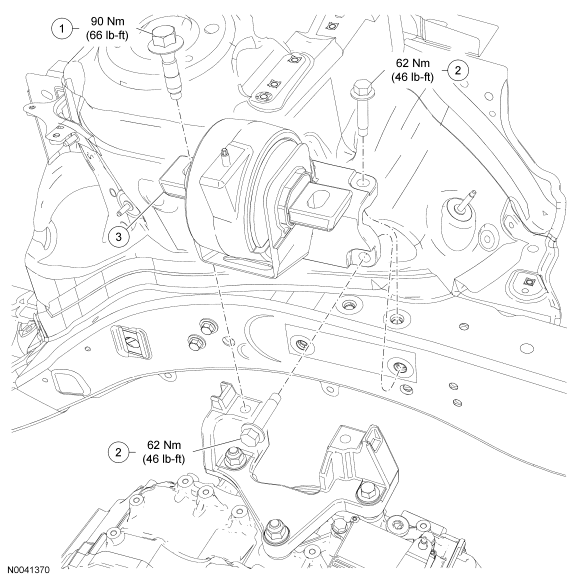

Fig 2: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.5L Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711873	Transaxle insulator through bolt
2	W711872	Transaxle insulator through bolt flagnut
3	W709234	Transaxle insulator-to-frame bolts
4	6F020	Transaxle insulator
